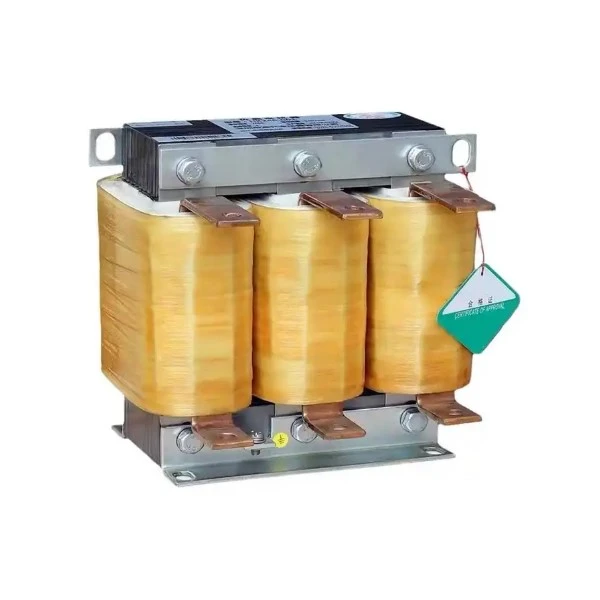

Aplikasyon prensipal la
AC Antre raktor enstale sou bò opinyon konvètisè yo, diminye inrush ak pik aktyèl la, amelyore faktè pouvwa reyèl la, siprime Harmony griy, amelyore fòm vag aktyèl la.
Karakteristik pwodwi
- Apwopriye pou konpansasyon pouvwa reyaktif ak kontwòl Harmony
- Réacteurs Antre yo itilize pou limite enpak aktyèl la ki te koze pa chanjman toudenkou nan vòltaj kadriyaj ak operasyonèl sou vòltaj; filtrage Harmony pou anpeche distòsyon fòm ond vòltaj griyaj la.
- Lisaj nan pulsasyon Spike ki genyen nan vòltaj la ekipman pou, atenuasyon nan domaj vòltaj ki te pwodwi pandan chanjman faz nan sikui redresman pon.
- Bloke entèferans nan griy la, diminye kouran Harmony ki te pwodwi pa inite redresman an ak polisyon griy la.
Dyagram
Espesifikasyon Kalite
|
Kalite |
PIC No. |
Pouvwa (KW) |
RatedCkouran (A) |
Enduktans (MH) |
Pwa (KG) |
Gwosè (mm) |
|||||
|
W |
L |
H |
W0 |
D0 |
A*B |
||||||
|
ACL-CF{{1}M{{2{2}} |
A |
2.2 |
5 |
2 |
1.5 |
93 |
69 |
110 |
40 |
48 |
7*11 |
|
ACL-CF{{1}M{{2{2}} |
3.7 |
10 |
1.4 |
2.6 |
115 |
73 |
125 |
50 |
53 |
7*11 |
|
|
ACL-CF{{1}M{{2{2}} |
5.5 |
15 |
1.08 |
2.8 |
115 |
73 |
125 |
50 |
53 |
7*11 |
|
|
ACL-CF{{1}M{{2{2}} |
7.5 |
20 |
0.7 |
2.9 |
115 |
73 |
125 |
50 |
53 |
7*11 |
|
|
ACL-CF{{1}M{{2{2}} |
B |
11 |
30 |
0.46 |
5.3 |
150 |
95 |
160 |
60 |
67 |
7*11 |
|
ACL-CF{{1}M{{2{2}} |
15 |
40 |
0.4 |
5.6 |
150 |
95 |
160 |
60 |
67 |
7*11 |
|
|
ACL-CF{{1}M{{2{2}} |
C |
18.5 |
50 |
0.28 |
5.7 |
180 |
110 |
160 |
80 |
67 |
7*11 |
|
ACL-CF{{1}M{{2{2}} |
22 |
60 |
0.23 |
5.8 |
180 |
110 |
160 |
80 |
67 |
7*11 |
|
|
ACL-CF{{1}M{{2{2}} |
30 |
80 |
0.18 |
8.5 |
180 |
130 |
160 |
80 |
87 |
7*11 |
|
|
ACL-CF{{1}M{{2{2}} |
37 |
90 |
0.16 |
8.9 |
180 |
110 |
160 |
80 |
67 |
7*11 |
|
|
ACL-CF{{1}M{{2{2}} |
45 |
120 |
0.12 |
9.2 |
180 |
110 |
160 |
80 |
67 |
7*11 |
|
|
ACL-CF0150-094U-400 |
55 |
150 |
0.094 |
14.5 |
230 |
160 |
220 |
110 |
85 |
9*18 |
|
|
ACL-CF0200-070U-400 |
75 |
200 |
0.07 |
15.2 |
230 |
160 |
220 |
110 |
85 |
9*18 |
|
|
ACL-CF0230-060U-400 |
90 |
230 |
0.06 |
19.5 |
230 |
175 |
220 |
110 |
100 |
9*18 |
|
|
ACL-CF0250-056U-400 |
110 |
250 |
0.056 |
20.8 |
230 |
175 |
220 |
110 |
100 |
9*18 |
|
|
ACL-CF0290-056U-400 |
D |
132 |
290 |
0.048 |
27.6 |
260 |
185 |
265 |
140 |
110 |
9*18 |
|
ACL-CF0330-042U-400 |
160 |
330 |
0.042 |
29.2 |
260 |
185 |
265 |
140 |
110 |
9*18 |
|
|
ACL-CF0400-035U-400 |
200 |
400 |
0.035 |
35.4 |
300 |
205 |
280 |
170 |
110 |
11*18 |
|
|
ACL-CF0560-025U-400 |
250 |
560 |
0.025 |
47.3 |
300 |
230 |
280 |
170 |
135 |
11*18 |
|
|
ACL-CF0600-024U-400 |
280 |
600 |
0.024 |
48.7 |
300 |
230 |
280 |
170 |
135 |
11*18 |
|
|
ACL-CF0660-022U-400 |
315 |
660 |
0.022 |
50.1 |
300 |
230 |
280 |
170 |
135 |
11*18 |
|
|
ACL-CF0800-17U5-400 |
400 |
800 |
0.0175 |
69.1 |
360 |
255 |
375 |
190 |
135 |
13*26 |
|
|
ACL-CF1000-12U7-400 |
500 |
1000 |
0.014 |
74.8 |
360 |
255 |
375 |
190 |
135 |
13*26 |
|
|
ACL-CF1200-11U7-400 |
E |
560 |
1200 |
0.0127 |
98 |
430 |
305 |
410 |
240 |
175 |
14*28 |
|
ACL-CF1600-08U6-400 |
630 |
1600 |
0.008 |
100 |
430 |
305 |
410 |
240 |
175 |
14*28 |
|
Avantaj nou yo
- Nouvo Shanghai Baogang Silisyòm asye fèy
- Klas F izolasyon materyèl, Ameriken DuPont izolasyon papye, izolasyon tep
- Klas H fil emaye, rezistans tanperati jiska 180 degre
- Penti bracket, fil pake vakyòm plonje
- Bri ki ba, ogmantasyon tanperati ki ba, pèfòmans ki estab
Avantaj nan Copper
- Pi wo fòs konpresiv
- Bon konduktiviti tèmik ak elektrik
- Bon duktilite ak plastisit
- Pi long lavi aplikasyon an
- Segondè rezistans korozyon
Sètifikasyon pwodwi
